Application
- For wooden doors between 32-50mm thick
- 19mm diameter handle
- Sprung
- Supplied with bolt-through fixings
- Concealed fixings
- Non-handed
Specification
- Manufactured from Grade 304 stainless steel

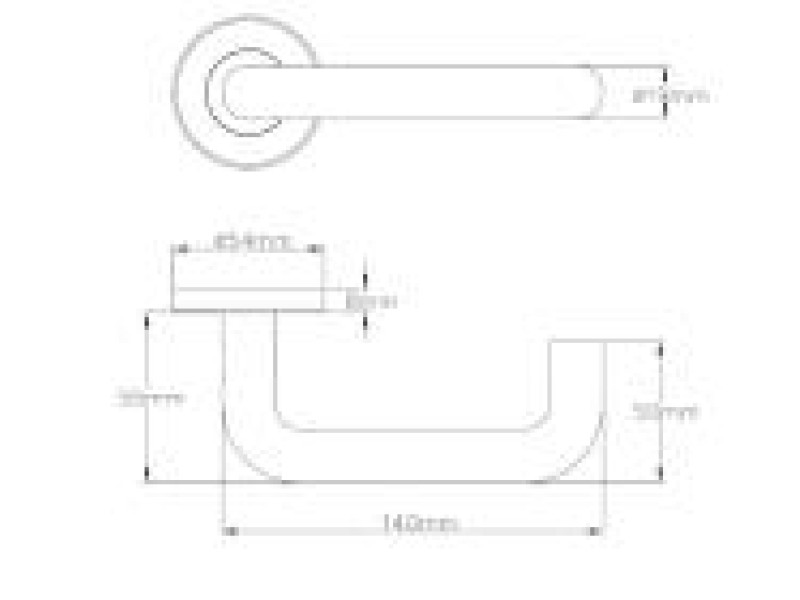

- Handle Length: 140mm
- Handle Projection: 55mm
- Rose Diameter: 54mm
- Rose Projection: 8mm
- Please refer to separate page for accessories
- Supplied with push-on rose as standard
- Available with screw-on rose upon request
- Available in SS finish as standard
Finish
- SS - Satin Stainless Steel
Standards
- BS EN 1634 Part 1 : 2000 assessed for use on 60 minute timber fire doors
- Assists in fulfilling duties required under the Equality Act (EA)
- Satisfies recommendations of BS8300 and Approved Document M (ADM) - subject to use on a contrasting background
- Cycle tested to 200,000 cycles
- Corrosion testing - 480 hours - EN 1670 Grade 4

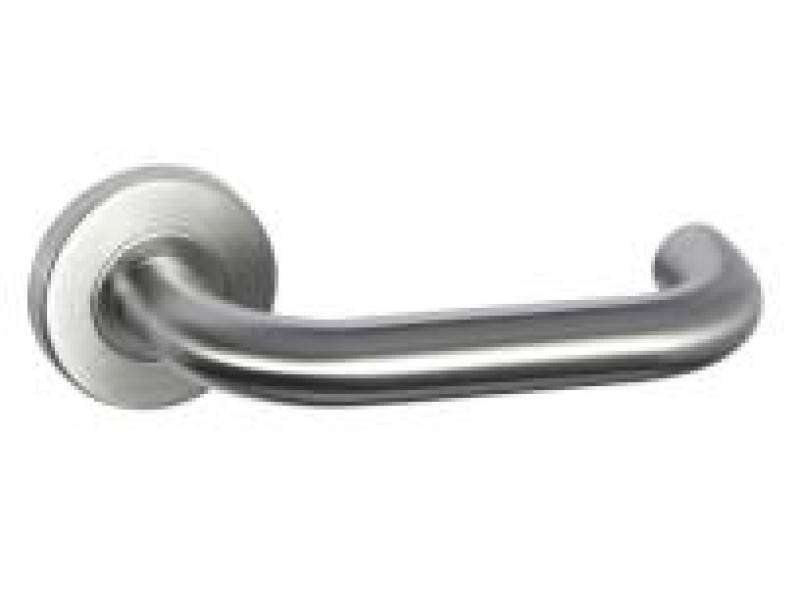

UNION 01 STYLE LEVER ON SPRUNG ROSE SS
- Brand: Union
- Product Code: J-1000RRS01SS
- Availability: In Stock
-
£19.96
- Ex Tax: £16.63
