Application

• For timber doors hinged on the left or right
• Suitable for doors up to 54mm thick

Specification

New features

• Easily reversible radius latchthat uses the unique UNION SwitchLatch technology,
  No tools are needed, it's Time saving and Simple.

• Chamfered bolt design increases the performance of the lock under side load testing.
• Anti-pick, anti-saw and anti-drill security features for resistance against attack
• Radius inner forend for ease of installation
• Can be installed in the many UK mortices without the need for additional carpentry or spoiling the edge of the door
• Anti-pick and keyhole protection prevents forced entry by picking
• Hardened steel pins provide resistance to attack from sawing
• Deadbolt locked or unlocked by the key from either side
• 20mm deadbolt for secure positive deadlocking and additional resistance against attack
• 2205S can be keyed alike with 2105S

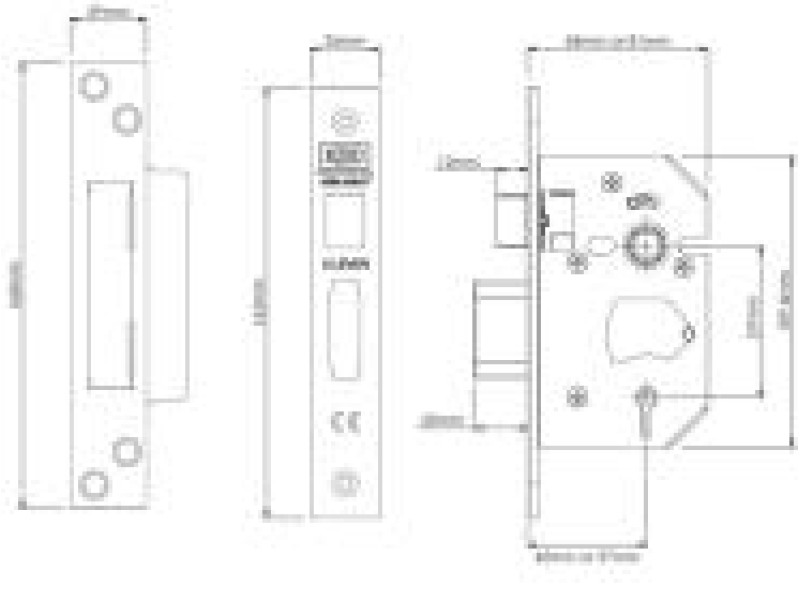

• Case Size: 68mm (2.5") or 81mm (3")
• Backset: 45mm or 57mm
• Case: Steel, red powder coat
• Forend: Stainless steel or brass plated
• Striking Plate: Finished to match forend
• Faceplate: Supplied with square faceplate which covers a radius inner forend
• Deadbolt: Zinc with hardened steel rollers
• Latch Bolt: Zinc
• Follower: Sintered Steel
• Rebate Kit: 2200REB 13mm (0.5")
• Keying Groups: May be supplied to pass or differ.  Supplied with 2 steel nickel plated keys
• Key Blank Number: JKB SBOLT
• Packaging: Individually boxed and Visipacked

Finish

• SS - Satin Stainless Steel
• PB - Polished Brass finish



Standards

• Tested to BS EN 12209:2003
