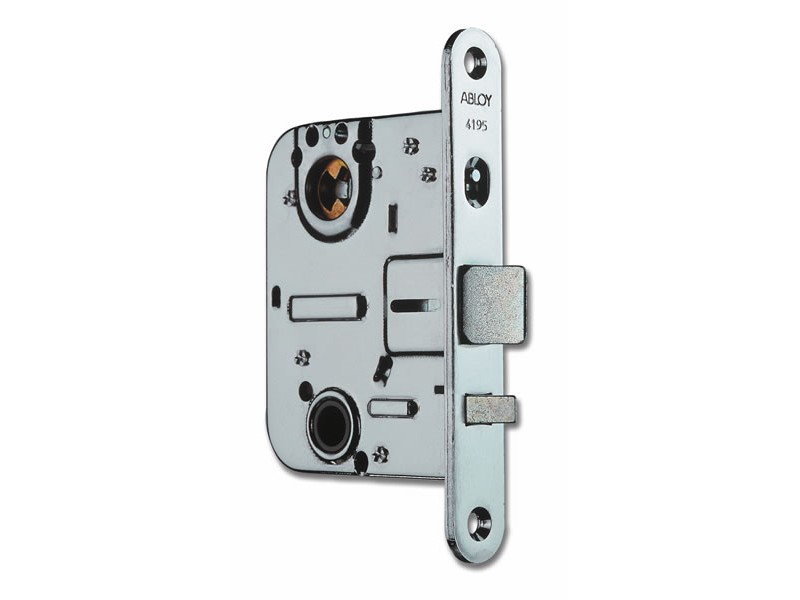

Cylinder lock case with automatically deadlocking latchbolt.
The latchbolt can be retained inside the lock case.
Deadlocking is controlled by a snib in the front plate.
Snib position:
UP = Deadlocking, latchbolt protrudes 21 mm. The lock can be opened only with a key or a thumbturn.
DOWN = Latchbolt is retained inside the lock case.
The door is kept closed by using a door closer.
4195X is the microswitch version of the lock.
The switch changes it's status when the latchbolt leaves its day locking position, i.e. the bolt protrudes 15 mm or more.
Following striker plates are recommended to be used with a
microswitch locking box: 4692, 4693.
Striker plate 4690, 4691, LP711, LP714, LP721, LP731
Finishes: Fe/ZL, Fe/YECRLQ
Cylinders:
ABLOY PROTEC, PROTEC2, SENTRY, EXEC, DISKLOCK PRO, HIGH PROFILE AND CLASSIC
Fire resistance -
Mortise standard SFS 5209

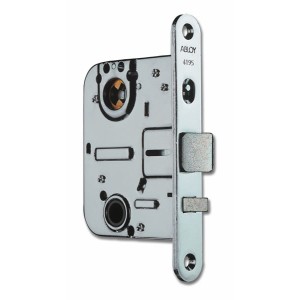

ABLOY 4195 LOCKCASE
- Brand: Abloy
- Product Code: 4195/CH
- Availability: In Stock
-
£84.82
- Ex Tax: £70.69
Available Options
